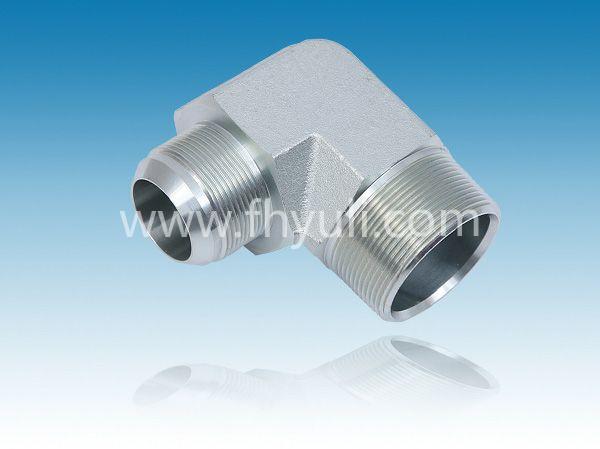

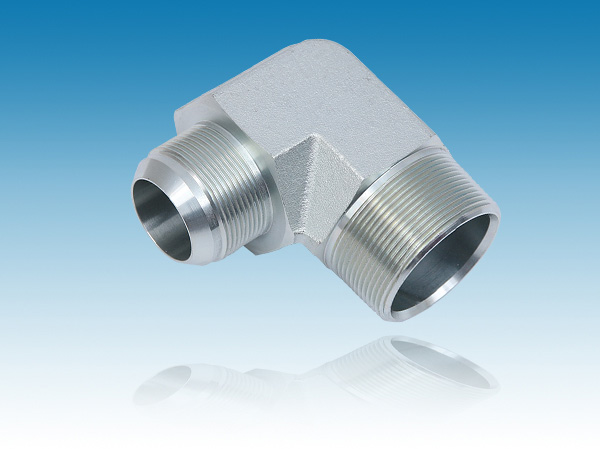

【產品名稱】 美制JIC螺紋37°直角接頭 2501系列
【所屬分類】 美制JIC螺紋37°接頭 【產品型號】 2501 【產品品牌】 寧吉羽立 NJ 【生產廠家】 寧波市寧吉羽立流體設備有限公司
產品詳情
| 品牌： | NJ |
| 型號： | 2501 |
| 材質： | 碳鋼 |
| 規格： | 90度彎頭 |
| 加工定制 | 是 |
| 適用范圍： | 機械設備 |
| 螺紋類型： | 直螺紋 |
| 鏈接方式 | 螺紋 |
| Product ID | Description | TUBE O.D. | B1 SAE 37 | A2 NPTF | B1 DRILL | A2 DRILL | M LGTH | L LGTH | Y FLATS |
| 2501- 02-02-FG | 02MJ-02MP 90°Elb Forg | 1/8 | 5/16-24 | 1/8-27 | 0.062 | 0.188 | 0.77 | 0.72 | 0.438 |
| 2501- 02-04-FG | 02MJ-04MP 90°Elb Forg | 1/8 | 5/16-24 | 1/4-18 | 0.062 | 0.281 | 0.93 | 1.09 | 0.562 |
| 2501- 03-02-FG | 03MJ-02MP 90°Elb Forg | 3/16 | 3/8-24 | 1/8-27 | 0.125 | 0.188 | 0.83 | 0.72 | 0.438 |
| 2501- 03-04-FG | 03MJ-04MP 90°Elb Forg | 3/16 | 3/8-24 | 1/4-18 | 0.125 | 0.281 | 0.96 | 1.09 | 0.562 |
| 2501- 04-01-FG | 04MJ-01MP 90°Elb Forg | 1/4 | 7/16-20 | 1/16-27 | 0.172 | 0.117 | 0.89 | 0.78 | 0.438 |
| 2501- 04-02-FG | 04MJ-02MP 90°Elb Forg | 1/4 | 7/16-20 | 1/8-27 | 0.172 | 0.188 | 0.89 | 0.78 | 0.438 |
| 2501- 04-04-FG | 04MJ-04MP 90°Elb Forg | 1/4 | 7/16-20 | 1/4-18 | 0.172 | 0.281 | 1.05 | 1.09 | 0.562 |
| 2501- 04-06-FG | 04MJ-06MP 90°Elb Forg | 1/4 | 7/16-20 | 3/8-18 | 0.172 | 0.406 | 1.12 | 1.22 | 0.750 |
| 2501- 04-08-FG | 04MJ-08MP 90°Elb Forg | 1/4 | 7/16-20 | 1/2-14 | 0.172 | 0.531 | 1.21 | 1.47 | 0.875 |
| 2501- 04-12-FG | 04MJ-12MP 90°Elb Forg | 1/4 | 7/16-20 | 3/4-14 | 0.172 | 0.719 | 1.30 | 1.59 | 1.062 |
| 2501- 05-02-FG | 05MJ-02MP 90°Elb Forg | 5/16 | 1/2-20 | 1/8-27 | 0.234 | 0.188 | 0.95 | 0.78 | 0.562 |
| 2501- 05-04-FG | 05MJ-04MP 90°Elb Forg | 5/16 | 1/2-20 | 1/4-18 | 0.234 | 0.281 | 1.05 | 1.09 | 0.562 |
| 2501- 05-06-FG | 05MJ-06MP 90°Elb Forg | 5/16 | 1/2-20 | 3/8-18 | 0.234 | 0.406 | 1.12 | 1.22 | 0.750 |
| 2501- 05-08-FG | 05MJ-08MP 90°Elb Forg | 5/16 | 1/2-20 | 1/2-14 | 0.234 | 0.531 | 1.21 | 1.47 | 0.875 |
| 2501- 06-01-FG | 06MJ-01MP 90°Elb Forg | 3/8 | 9/16-18 | 1/16-27 | 0.297 | 0.117 | 1.06 | 0.90 | 0.562 |
| 2501- 06-02-FG | 06MJ-02MP 90°Elb Forg | 3/8 | 9/16-18 | 1/8-27 | 0.297 | 0.188 | 1.06 | 0.90 | 0.562 |
| 2501- 06-04-FG | 06MJ-04MP 90°Elb Forg | 3/8 | 9/16-18 | 1/4-18 | 0.297 | 0.281 | 1.06 | 1.09 | 0.562 |
| 2501- 06-06-FG | 06MJ-06MP 90°Elb Forg | 3/8 | 9/16-18 | 3/8-18 | 0.297 | 0.406 | 1.14 | 1.22 | 0.750 |
| 2501- 06-08-FG | 06MJ-08MP 90°Elb Forg | 3/8 | 9/16-18 | 1/2-14 | 0.297 | 0.531 | 1.22 | 1.47 | 0.875 |
| 2501- 06-12-FG | 06MJ-12MP 90°Elb Forg | 3/8 | 9/16-18 | 3/4-14 | 0.297 | 0.719 | 1.31 | 1.59 | 1.062 |
| 2501- 08-02-FG | 08MJ-02MP 90°Elb Forg | 1/2 | 3/4-16 | 1/8-27 | 0.391 | 0.188 | 1.25 | 1.03 | 0.750 |
| 2501- 08-04-FG | 08MJ-04MP 90°Elb Forg | 1/2 | 3/4-16 | 1/4-18 | 0.391 | 0.281 | 1.25 | 1.22 | 0.750 |
| 2501- 08-06-FG | 08MJ-06MP 90°Elb Forg | 1/2 | 3/4-16 | 3/8-18 | 0.391 | 0.406 | 1.25 | 1.22 | 0.750 |
| 2501- 08-08-FG | 08MJ-08MP 90°Elb Forg | 1/2 | 3/4-16 | 1/2-14 | 0.391 | 0.531 | 1.33 | 1.47 | 0.875 |
| 2501- 08-12-FG | 08MJ-12MP 90°Elb Forg | 1/2 | 3/4-16 | 3/4-14 | 0.391 | 0.719 | 1.42 | 1.59 | 1.062 |
| 2501- 08-16-FG | 08MJ-16MP 90°Elb Forg | 1/2 | 3/4-16 | 1-11-1/2 | 0.391 | 0.938 | 1.52 | 1.97 | 1.312 |
| 2501- 10-04-FG | 10MJ-04MP 90°Elb Forg | 5/8 | 7/8-14 | 1/4-18 | 0.484 | 0.281 | 1.45 | 1.34 | 0.875 |
| 2501- 10-06-FG | 10MJ-06MP 90°Elb Forg | 5/8 | 7/8-14 | 3/8-18 | 0.484 | 0.406 | 1.45 | 1.28 | 0.875 |
| 2501- 10-08-FG | 10MJ-08MP 90°Elb Forg | 5/8 | 7/8-14 | 1/2-14 | 0.484 | 0.531 | 1.45 | 1.47 | 0.875 |
| 2501- 10-12-FG | 10MJ-12MP 90°Elb Forg | 5/8 | 7/8-14 | 3/4-14 | 0.484 | 0.719 | 1.54 | 1.59 | 1.062 |
| 2501- 10-16-FG | 10MJ-16MP 90°Elb Forg | 5/8 | 7/8-14 | 1-11-1/2 | 0.484 | 0.938 | 1.64 | 1.97 | 1.312 |
| 2501- 12-06-FG | 12MJ-06MP 90°Elb Forg | 3/4 | 1-1/16-12 | 3/8-18 | 0.609 | 0.406 | 1.66 | 1.40 | 1.062 |
| 2501- 12-08-FG | 12MJ-08MP 90°Elb Forg | 3/4 | 1-1/16-12 | 1/2-14 | 0.609 | 0.531 | 1.66 | 1.59 | 1.062 |
| 2501- 12-12-FG | 12MJ-12MP 90°Elb Forg | 3/4 | 1-1/16-12 | 3/4-14 | 0.609 | 0.719 | 1.66 | 1.59 | 1.062 |
| 2501- 12-16-FG | 12MJ-16MP 90°Elb Forg | 3/4 | 1-1/16-12 | 1-11-1/2 | 0.609 | 0.938 | 1.76 | 1.97 | 1.312 |
| 2501- 12-20-FG | 12MJ-20MP 90°Elb Forg | 3/4 | 1-1/16-12 | 1-1/4-11-1/2 | 0.609 | 1.250 | 1.97 | 2.38 | 1.625 |
| 2501- 14-08-FG | 14MJ-08MP 90°Elb Forg | 7/8 | 1-3/16-12 | 1/2-14 | 0.719 | 0.531 | 1.80 | 1.69 | 1.312 |
| 2501- 14-12-FG | 14MJ-12MP 90°Elb Forg | 7/8 | 1-3/16-12 | 3/4-14 | 0.719 | 0.719 | 1.80 | 1.69 | 1.312 |
| 2501- 14-16-FG | 14MJ-16MP 90°Elb Forg | 7/8 | 1-3/16-12 | 1-11-1/2 | 0.719 | 0.938 | 1.80 | 1.97 | 1.312 |
| 2501- 16-08-FG | 16MJ-08MP 90°Elb Forg | 1 | 1-5/16-12 | 1/2-14 | 0.844 | 0.531 | 1.81 | 1.78 | 1.312 |
| 2501- 16-12-FG | 16MJ-12MP 90°Elb Forg | 1 | 1-5/16-12 | 3/4-14 | 0.844 | 0.719 | 1.81 | 1.78 | 1.312 |
| 2501- 16-16-FG | 16MJ-16MP 90°Elb Forg | 1 | 1-5/16-12 | 1-11-1/2 | 0.844 | 0.938 | 1.81 | 1.97 | 1.312 |
| 2501- 16-20-FG | 16MJ-20MP 90°Elb Forg | 1 | 1-5/16-12 | 1-1/4-11-1/2 | 0.844 | 1.250 | 2.01 | 2.38 | 1.625 |
| 2501- 16-24-FG | 16MJ-24MP 90°Elb Forg | 1 | 1-5/16-12 | 1-1/2-11-1/2 | 0.844 | 1.500 | 2.16 | 2.64 | 1.875 |
| 2501- 20-12-FG | 20MJ-12MP 90°Elb Forg | 1 1/4 | 1-5/8-12 | 3/4-14 | 1.078 | 0.719 | 2.06 | 2.16 | 1.625 |
| 2501- 20-16-FG | 20MJ-16MP 90°Elb Forg | 1 1/4 | 1-5/8-12 | 1-11-1/2 | 1.078 | 0.938 | 2.06 | 2.35 | 1.625 |
| 2501- 20-20-FG | 20MJ-20MP 90°Elb Forg | 1 1/4 | 1-5/8-12 | 1-1/4-11-1/2 | 1.078 | 1.250 | 2.06 | 2.38 | 1.625 |
| 2501- 20-24-FG | 20MJ-24MP 90°Elb Forg | 1 1/4 | 1-5/8-12 | 1-1/2-11-1/2 | 1.078 | 1.500 | 2.20 | 2.64 | 1.875 |
| 2501- 24-16-FG | 24MJ-16MP 90°Elb Forg | 1 1/2 | 1-7/8-12 | 1-11-1/2 | 1.312 | 0.938 | 2.33 | 2.58 | 1.875 |
| 2501- 24-20-FG | 24MJ-20MP 90°Elb Forg | 1 1/2 | 1-7/8-12 | 1-1/4-11-1/2 | 1.312 | 1.250 | 2.33 | 2.61 | 1.875 |
| 2501- 24-24-FG | 24MJ-24MP 90°Elb Forg | 1 1/2 | 1-7/8-12 | 1-1/2-11-1/2 | 1.312 | 1.500 | 2.33 | 2.64 | 1.875 |
| 2501- 24-32-FG | 24MJ-32MP 90°Elb Forg | 1 1/2 | 1-7/8-12 | 2-11-1/2 | 1.312 | 1.938 | 2.81 | 3.00 | 2.500 |
| 2501- 32-24-FG | 32MJ-24MP 90°Elb Forg | 2 | 2-1/2-12 | 1-1/2-11-1/2 | 1.781 | 1.500 | 3.06 | 2.97 | 2.500 |
| 2501- 32-32-FG | 32MJ-32MP 90°Elb Forg | 2 | 2-1/2-12 | 2-11-1/2 | 1.781 | 1.938 | 3.06 | 3.00 | 2.500 |
| 2501- 40-40-FG | 40MJ-40MP 90°Elb Forg | 2 1/2 | 3-12 | 2 1/2-8 | 2.318 | 2.318 | 3.25 | 3.95 | 2.234 |
