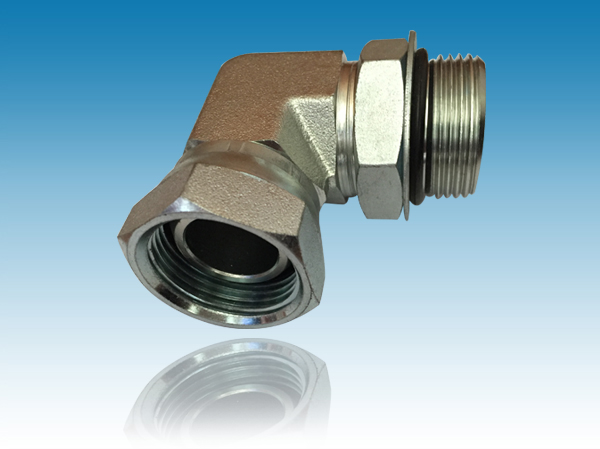

【產品名稱】 美制NPSM螺紋接頭 6901系列
【所屬分類】 美制NPSM螺紋接頭 【產品型號】 6901 【產品品牌】 寧吉羽立 NJ 【生產廠家】 寧波市寧吉羽立流體設備有限公司
| 品牌： | NJ |
| 型號： | 6901 |
| 材質： | 碳鋼 |
| 規格： | 90度接頭 |
| 加工定制 | 是 |
| 適用范圍： | 機械設備 |
| 螺紋類型： | NPSM螺紋 |
| 鏈接方式 | 螺紋 |
Product ID | Descri ption | TUBEO.D. | BSAEORB | ANPSM | BDRILL | ADR ILL | M7YLGTH | MLG TH | M6LGTH | CH EX | C1 HEX | YFL ATS |
| 6901-04-02-NWO-FG | 04MAORB-02FPS90 °FORGED1 | 1/4 | 7/16-20 | 1/8-27 | 0.172 | 0.150 | 1.03 | 0.70 | 0.84 | 0.563 | 0.562 | 0.438 |
| 6901-04-04-NWO-FG | 04MAORB-04FPS90 °ElbForg | 1/4 | 7/16-20 | 1/4-18 | 0.172 | 0.220 | 1.19 | 0.88 | 1.07 | 0.563 | 0.688 | 0.562 |
| 6901-04-04-NWO-SS | 04MAORB-04FPS90 °ElbStnls | 1/4 | 7/16-20 | 1/4-18 | 0.172 | 0.220 | 1.19 | 0.88 | 1.07 | 0.563 | 0.688 | 0.562 |
| 6901-04-06-NWO-FG | 04MAORB-06FPS90 °FORGED1 | 1/4 | 7/16-20 | 3/8-18 | 0.172 | 0.340 | 1.26 | 0.99 | 1.20 | 0.563 | 0.875 | 0.750 |
| 6901-04-08-NWO-FG | 04MAORB-08FPS90 °FORGED1 | 1/4 | 7/16-20 | 1/2-14 | 0.172 | 0.460 | 1.26 | 1.11 | 1.39 | 0.563 | 1.000 | 0.750 |
| 6901-05-04-NWO-FG | 05MAORB-04FPS90 °FORGED1 | 5/16 | 1/2-20 | 1/4-18 | 0.234 | 0.220 | 1.13 | 0.88 | 1.07 | 0.625 | 0.688 | 0.562 |
| 6901-06-04-NWO-FG | 06MAORB-04FPS90 °ElbForg | 3/8 | 9/16-18 | 1/4-18 | 0.297 | 0.220 | 1.25 | 0.88 | 1.07 | 0.688 | 0.562 | 0.562 |
| 6901-06-04-NWO-SS | 06MAORB-04FPS90 °ElbStnls | 3/8 | 9/16-18 | 1/4-18 | 0.297 | 0.220 | 1.25 | 0.88 | 1.07 | 0.688 | 0.688 | 0.562 |
| 6901-06-06-NWO-FG | 06MAORB-06FPS90 °ElbForg | 3/8 | 9/16-18 | 3/8-18 | 0.297 | 0.340 | 1.32 | 0.99 | 1.20 | 0.688 | 0.875 | 0.750 |
| 6901-06-06-NWO-SS | 06MAORB-06FPS90 °ElbStnls | 3/8 | 9/16-18 | 3/8-18 | 0.297 | 0.340 | 1.32 | 0.99 | 1.20 | 0.688 | 0.875 | 0.750 |
| 6901-06-08-NWO-FG | MB-FPS90° | 3/8 | 9/16-18 | 1/2-14 | 0.297 | 0.460 | 1.32 | 1.11 | 1.39 | 0.688 | 1.000 | 0.750 |
| 6901-08-04-NWO-FG | 08MAORB-04FPS90 °ElbForg | 1/2 | 3/4-16 | 1/4-18 | 0.391 | 0.220 | 1.45 | 0.97 | 1.16 | 0.875 | 0.688 | 0.750 |
| 6901-08-06-NWO-FG | 08MAORB-06FPS90 °ElbForg | 1/2 | 3/4-16 | 3/8-18 | 0.391 | 0.320 /0.360 | 1.45 | 0.99 | 1.20 | 0.875 | 0.875 | 0.750 |
| 6901-08-06-NWO-SS | 08MAORB-06FPS90 °ElbStnls | 1/2 | 3/4-16 | 3/8-18 | 0.391 | 0.340 | 1.45 | 0.99 | 1.20 | 0.875 | 0.875 | 0.750 |
| 6901-08-08-NWO-FG | 08MAORB-08FPS90 °ElbForg | 1/2 | 3/4-16 | 1/2-14 | 0.391 | 0.460 | 1.45 | 1.11 | 1.39 | 0.875 | 1.000 | 0.750 |
| 6901-08-08-NWO-SS | 08MAORB-08FPS90 °ElbStnls | 1/2 | 3/4-16 | 1/2-14 | 0.391 | 0.460 | 1.45 | 1.11 | 1.39 | 0.875 | 1.000 | 0.750 |
| 6901-08-12-NWO-FG | 08MAORB-12FPS90 °ElbForg | 1/2 | 3/4-16 | 3/4-14 | 0.391 | 0.635 | 1.62 | 1.30 | 1.65 | 0.875 | 1.250 | 1.062 |
| 6901-08-12-NWO-SS | 08MAORB-12FPS90 °ElbStnls | 1/2 | 3/4-16 | 3/4-14 | 0.391 | 0.635 | 1.62 | 1.30 | 1.65 | 0.875 | 1.250 | 1.062 |
| 6901-10-04-NWO-FG | 10MAORB-04FPS90 °FORGED1 | 5/8 | 7/8-14 | 1/4-18 | 0.484 | 0.220 | 1.70 | 1.02 | 1.21 | 1.000 | 0.688 | 0.875 |
| 6901-10-06-NWO-FG | 10MAORB-06FPS90 °ElbForg | 5/8 | 7/8-14 | 3/8-18 | 0.484 | 0.340 | 1.70 | 1.04 | 1.25 | 1.000 | 0.875 | 0.875 |
| 6901-10-08-NWO-FG | 10MAORB-08FPS90 °ElbForg | 5/8 | 7/8-14 | 1/2-14 | 0.484 | 0.460 | 1.70 | 1.11 | 1.39 | 1.000 | 1.000 | 0.875 |
| 6901-10-08-NWO-SS | 10MAORB-08FPS90 °ElbStnls | 5/8 | 7/8-14 | 1/2-14 | 0.484 | 0.460 | 1.70 | 1.11 | 1.39 | 1.000 | 1.000 | 0.875 |
| 6901-10-12-NWO-FG | 10MAORB-12FPS90 °ElbForg | 5/8 | 7/8-14 | 3/4-14 | 0.484 | 0.635 | 1.78 | 1.30 | 1.65 | 1.000 | 1.250 | 1.062 |
| 6901-10-12-NWO-SS | 10MAORB-12FPS90 °ElbStnls | 5/8 | 7/8-14 | 3/4-14 | 0.484 | 0.635 | 1.78 | 1.30 | 1.65 | 1.000 | 1.250 | 1.062 |
| 6901-12-06-NWO-FG | 12MAORB-06FPS90°FORGED1 | 3/4 | 1-1/16-12 | 3/8-18 | 0.609 | 0.320 /0.360 | 1.94 | 1.26 | 1.47 | 1.250 | 0.875 | 1.062 |
| 6901-12-08-NWO-FG | 12MAORB-08FPS90 °ElbForg | 3/4 | 1-1/16-12 | 1/2-14 | 0.609 | 0.460 | 1.94 | 1.30 | 1.58 | 1.250 | 1.000 | 1.062 |
| 6901-12-08-NWO-SS | 12MAORB-08FPS90 °ElbStnls | 3/4 | 1-1/16-12 | 1/2-14 | 0.609 | 0.460 | 1.94 | 1.30 | 1.58 | 1.250 | 1.000 | 1.062 |
| 6901-12-12-NWO-FG | 12MAORB-12FPS90 °ElbForg | 3/4 | 1-1/16-12 | 3/4-14 | 0.609 | 0.635 | 1.94 | 1.30 | 1.65 | 1.250 | 1.250 | 1.062 |
| 6901-12-12-NWO-SS | 12MAORB-12FPS90 °ElbStnls | 3/4 | 1-1/16-12 | 3/4-14 | 0.609 | 0.635 | 1.94 | 1.30 | 1.65 | 1.250 | 1.250 | 1.062 |
| 6901-12-16-NWO-FG | 12MAORB-16FPS90 °ElbForg | 3/4 | 1-1/16-12 | 1-11-1/2 | 0.609 | 0.831 | 2.05 | 1.54 | 1.89 | 1.250 | 1.500 | 1.312 |
| 6901-14-12-NWO-FG | 14MAORB-12FPS90 °ElbForg | 7/8 | 1-3/16-12 | 3/4-14 | 0.719 | 0.635 | 2.00 | 1.43 | 1.78 | 1.375 | 1.250 | 1.312 |
| 6901-14-16-NWO-FG | 14MAORB-16FPS90 °FORGED1 | 7/8 | 1-3/16-12 | 1-11-1/2 | 0.719 | 0.831 | 2.05 | 1.54 | 1.89 | 1.375 | 1.500 | 1.312 |
| 6901-16-12-NWO-FG | 16MAORB-12FPS90 °ElbForg | 1 | 1-5/16-12 | 3/4-14 | 0.844 | 0.635 | 2.05 | 1.43 | 1.78 | 1.500 | 1.250 | 1.312 |
| 6901-16-16-NWO-FG | 16MAORB-16FPS90 °ElbForg | 1 | 1-5/16-12 | 1-11-1/2 | 0.844 | 0.78/0.88 | 2.05 | 1.54 | 1.89 | 1.500 | 1.500 | 1.312 |
| 6901-16-16-NWO-SS | 16MAORB-16FPS90 °ElbStnls | 1 | 1-5/16-12 | 1-11-1/2 | 0.844 | 0.831 | 2.05 | 1.54 | 1.89 | 1.500 | 1.500 | 1.312 |
| 6901-16-20-NWO-FG | 16MAORB-20FPS90 °ElbForg | 1 | 1-5/16-12 | 1-1/4-11-1/2 | 0.844 | 1.01 /1.16 | 2.25 | 1.78 | 2.20 | 1.500 | 1.875 | 1.625 |
| 6901-20-12-NWO-FG | 20MAORB-12FPS90 °ElbForg | 1-1/4 | 1-5/8-12 | 3/4-14 | 1.078 | 0.635 | 2.25 | 1.56 | 1.91 | 1.875 | 1.250 | 1.625 |
| 6901-20-16-NWO-FG | 20MAORB-16FPS90 °ElbForg | 1-1/4 | 1-5/8-12 | 1-11-1/2 | 1.078 | 0.831 | 2.25 | 1.70 | 2.05 | 1.875 | 1.500 | 1.625 |
| 6901-20-20-NWO-FG | 20MAORB-20FPS90 °ElbForg | 1-1/4 | 1-5/8-12 | 1-1/4-11-1/2 | 1.078 | 1.087 | 2.25 | 1.73 | 2.15 | 1.875 | 1.875 | 1.625 |
| 6901-20-20-NWO-SS | 20MAORB-16FPS90 °ElbStnls | 1-1/4 | 1-5/8-12 | 1-1/4-11-1/2 | 1.078 | 1.087 | 2.25 | 1.73 | 2.15 | 1.875 | 1.875 | 1.625 |
| 6901-24-20-NWO-FG | 24MAORB-20FPS90 °ElbForg | 1-1/2 | 1-7/8-12 | 1-1/4-11-1/2 | 1.312 | 1.087 | 2.39 | 1.77 | 2.19 | 2.125 | 1.875 | 1.875 |
| 6901-24-24-NWO-FG | 24MAORB-24FPS90°ElbForg | 1-1/2 | 1-7/8-12 | 1-1/2-11-1/2 | 1.312 | 1.317 | 2.39 | 1.89 | 2.31 | 2.125 | 2.125 | 1.875 |
| 6901-24-24-NWO-SS | 24MAORB-24FPS90 °ElbStnls | 1-1/2 | 1-7/8-12 | 1-1/2-11-1/2 | 1.312 | 1.317 | 2.39 | 1.89 | 2.31 | 2.125 | 2.125 | 1.875 |
| 6901-32-32-NWO-FG | 32MAORB-32FPS90 °ElbForged | 2 | 2-1/2-12 | 2-11-1/2 | 1.781 | 1.802 | 2.89 | 2.27 | 2.69 | 2.750 | 2.625 | 2.500 |
