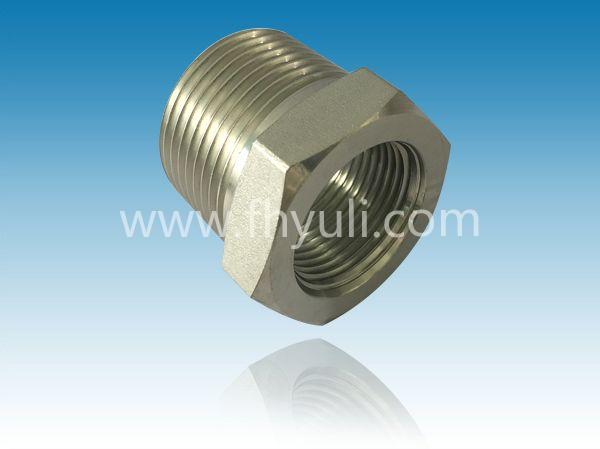

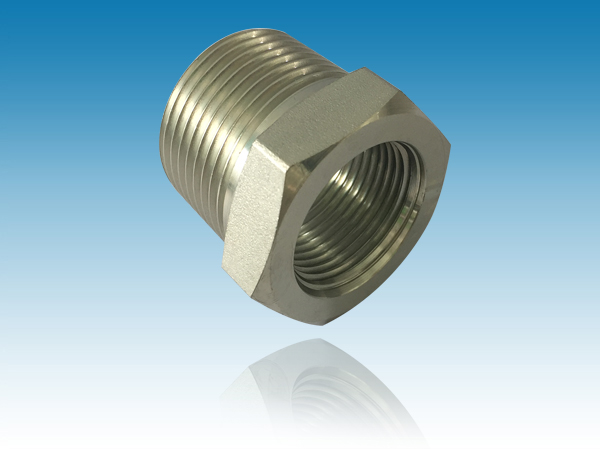

【產品名稱】 英制椎管螺紋接頭 5T-SP系列
【所屬分類】 英制螺紋接頭 【產品型號】 5T-SP 【產品品牌】 寧吉羽立 NJ 【生產廠家】 寧波市寧吉羽立流體設備有限公司
產品詳情
| 品牌： | NJ |
| 型號： | 5T-SP |
| 材質： | 碳鋼 |
| 規格： | 直管接頭 |
| 加工定制 | 是 |
| 適用范圍： | 機械設備 |
| 螺紋類型： | 英制螺紋 |
| 鏈接方式 | 螺紋 |
| PART NO | THREAD | DIMENSIONS | |||
| E | F | A | L | S1 | |
| 5T-02-04SP | R1/8"X28 | Rc1/4"x19 | 11 | 32.5 | 19 |
| 5T-04-02SP | R1/4"X19 | Rc1/8"x28 | 14.5 | 20.5 | 14 |
| 5T-04SP | R1/4"X19 | Rc1/4"x19 | 14.5 | 36 | 19 |
| 5T-04-06SP | R1/4"X19 | Rc3/8"x19 | 14.5 | 38 | 22 |
| 5T-06-02SP | R1/8"X19 | Rc1/8"x28 | 15 | 23 | 19 |
| 5T-06-04SP | R3/8"X19 | Rc1/4"x19 | 15 | 23 | 19 |
| 5T-06SP | R3/8"X19 | Rc3/8"x19 | 15 | 38.5 | 22 |
| 5T-06-08SP | R3/8"X19 | Rc1/2"x14 | 15 | 44 | 27 |
| 5T-08-04SP | R1/2"X14 | Rc1/2"x19 | 20 | 30 | 24 |
| 5T-08-06SP | R1/2"X14 | Rc3/8"x19 | 20 | 30 | 24 |
| 5T-08SP | R1/2"X14 | Rc1/2"x14 | 20 | 49 | 27 |
| 5T-08-12SP | R1/2"X14 | Rc3/4"x14 | 20 | 51 | 36 |
| 5T-12-06SP | R3/4"X14 | Rc3/8"x19 | 20 | 31 | 30 |
| 5T-12-08SP | R3/4"X14 | Rc1/2"x14 | 20 | 31 | 30 |
| 5T-12SP | R3/4"X14 | Rc3/4"x14 | 20 | 51 | 36 |
| 5T-12-16SP | R3/4"X14 | Rc1"x11 | 20 | 56.6 | 41 |
| 5T-16-08SP | R1"X11 | Rc1/2"x14 | 25.5 | 37 | 36 |
| 5T-16-12SP | R1"X11 | Rc3/4"x14 | 25.5 | 37 | 36 |
| 5T-16SP | R1"X11 | Rc1"x11 | 25.5 | 60 | 41 |
| 5T-16-20SP | R1"X11 | Rc1.1/4"x11 | 25.5 | 64 | 50 |
| 5T-20-12SP | R1.1/4"X11 | Rc3/4"x14 | 26.5 | 38 | 46 |
| 5T-20-16SP | R1.1/4"X11 | Rc1"x11 | 26.5 | 38 | 46 |
| 5T-20SP | R1.1/4"X11 | Rc1.1/4"x11 | 26.5 | 64.5 | 50 |
| 5T-24-16SP | R1.1/2"X11 | Rc1"x11 | 26.5 | 41 | 50 |
| 5T-24-20SP | R1.1/2"X11 | Rc1.1/4"x11 | 26.5 | 41 | 50 |
| 5T-32-20SP | R2"X11 | Rc1.1/4"x11 | 30 | 45 | 65 |
| 5T-32-24SP | R2"X11 | Rc1.1/2"x11 | 30 | 45 | 65 |
